Lead ore crusher
1. Working Principle

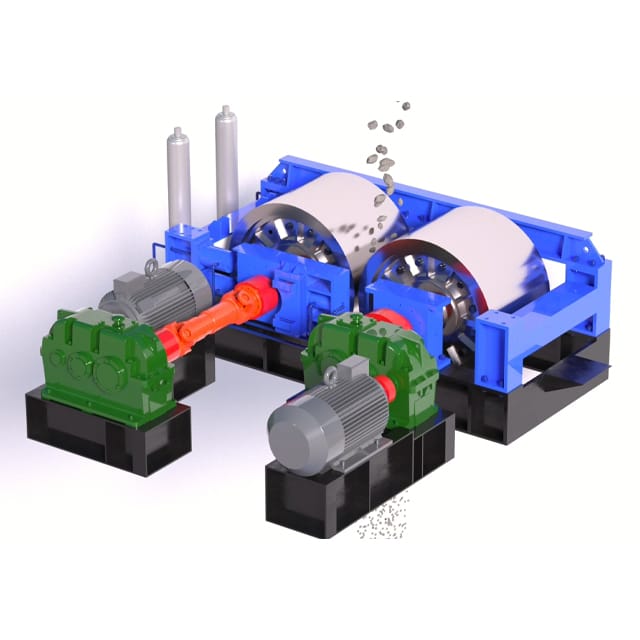

The Huashengming double-roll crusher crushes materials by applying continuous compressive and shear forces through two counter-rotating rolls. When lead ore falls from the top feed opening between the rolls, it enters the crushing chamber where it is subjected to high-pressure compression and shear forces, resulting in fragmentation. This relatively “gentle” crushing method offers key advantages for lead ore processing.
2. Advantages
Precise particle size control effectively reduces over-crushing:
Lead-zinc ores are predominantly sulfide minerals, where particle size significantly impacts mineral recovery rates. Excessive impact crushing generates substantial fines, leading to metal loss. The slow compression of the double-roll crusher effectively minimizes the production of excessively fine particles, ensuring uniform particle size distribution in the final product. This is crucial for subsequent flotation processes.
Specialized Wear-Resistant and Corrosion-Resistant Design:
Addressing the corrosive nature of sulfur-containing lead-zinc ores, Huashengming’s double-roll crushers feature roll surfaces made of high-chromium alloy (hardness up to HRC 60-62) with anti-corrosion coating. This design extends roll surface lifespan to 6-8 months under harsh operating conditions.
Energy Efficiency and Overload Protection:
The equipment operates with low energy consumption per unit. Its hydraulic or spring overload protection system automatically retracts the rollers upon encountering non-crushable foreign objects (such as iron tools like drill bits). After the foreign object is expelled, the system automatically resets, effectively safeguarding the machine’s core components from damage.
lithium ore and chromite ore
1.Working Principle
The Huashengming double-roll crusher crushes materials by applying continuous compressive and shear forces through two counter-rotating rolls. The motor drives the fixed roll and movable roll sections via a reducer and V-belt, respectively. Crushable materials enter between the rolls through the feed inlet. As the rolls rotate inward in sync, the materials undergo compression and grinding to achieve crushing.
2. Advantages
Precise and Controllable Output Particle Size
By adjusting the gap between the two rollers, the crushing particle size can be freely modified to meet diverse process requirements. This slow compression method effectively minimizes the production of excessively fine powder, resulting in a more uniform output particle size.
Wear-Resistant and Durable
Roll shells can be manufactured using high-chromium alloy composite casting, achieving high hardness (up to HRC 62+) and exceptional wear resistance, significantly extending equipment lifespan. Roll sleeves on certain models boast an average service life exceeding 2 years.
Intelligent Control and Protection
Premium models (e.g., HSM Series Hydraulic Double-Roll Sand Maker) feature standard PLC intelligent control systems supporting remote monitoring and parameter adjustment. Equipped with a hydraulic automatic retreat system, the equipment automatically protects against damage when encountering non-crushable foreign objects (e.g., metal chunks).
High Efficiency and Energy Savings
Designs such as dual-motor synchronous drive help reduce energy consumption, achieving over 20% greater energy efficiency compared to traditional equipment.
。
]]>
Lithium Ore And Chrome Ore Crusher
1. Working Principle
The double-roll crusher primarily crushes materials by squeezing and grinding them between two counter-rotating rolls. When lithium ore enters the crushing chamber through the top feed opening between the rolls, it undergoes high-pressure compression and shear forces to achieve fragmentation. This relatively “gentle” crushing method offers significant advantages in lithium battery material processing.
2.Advantages
Eliminates metal contamination, ensuring high purity of battery materials
This is the most critical advantage of double-roll crushers when processing lithium ore. Lithium battery cathode materials impose extremely stringent requirements on metal impurities such as iron (Fe) and chromium (Cr). Traditional crushers using metal rollers like manganese steel inevitably introduce trace metal contamination. Double-roll crushers, however, can employ ceramic or zirconia rollers to ensure no metallic impurities enter during crushing. Case studies demonstrate that using ceramic double-roll crushers can reduce iron content in cathode materials from over 100 ppm to below 5 ppm.
Precise and Controllable Particle Size to Meet Specific Process Requirements
The discharge particle size can be easily controlled by precisely adjusting the gap between the two rollers via a hydraulic system or mechanical device. This is crucial for subsequent mineral processing or chemical reactions, as uniform particle size distribution enhances reaction efficiency and product consistency.
Energy-efficient and environmentally friendly production
Featuring a low-speed, high-torque design, the double-roll crusher consumes less energy than traditional ball mills. Additionally, the equipment typically employs a fully sealed structure with dust extraction interfaces, effectively preventing dust leakage to safeguard the working environment and meet environmental standards.
stone crusher
Manganese Crusher
1.Working Principle
The working principle of the double-roll crusher is highly intuitive: two rolls rotate toward each other driven by an electric motor. Material enters the V-shaped crushing chamber formed between the rolls from the top, where it is continuously crushed by compressive and shearing forces. By adjusting the gap between the rolls (via a wedge device or shim adjustment), the maximum particle size of the product can be precisely controlled to meet diverse production requirements.
2.Advantages
Excellent particle size control with low over-grinding rate:
Slow compression and shearing forces enable more uniform material fragmentation while significantly reducing the production of excessively fine powder. This is crucial for subsequent mineral processing stages, as uniform feed particle size effectively enhances ore recovery rates.
Energy-Efficient and High-Performance:
Integrating double-roll crushers into grinding systems maximizes the production capacity of grinding equipment, typically boosting output by 30%-40% while reducing overall energy consumption by 20%-30%. Data from some manufacturers indicates their equipment consumes approximately 20% less electricity per ton of ore compared to traditional equipment.
Simple Structure and Easy Maintenance:
The double-roll crusher primarily consists of rollers, roller support bearings, compression and adjustment mechanisms, and drive units. Its compact design facilitates straightforward maintenance. Models featuring specialized roller surfaces (e.g., high-chromium alloy rollers) can achieve roller surface lifespans exceeding one year.
Sensitive overload protection:
When non-crushable foreign objects (e.g., iron pieces) enter the crushing chamber, the rollers automatically retract via hydraulic cylinders or springs to widen the gap. After the foreign object is discharged, the rollers automatically reset, effectively protecting the machine.
particularly in scenarios where product shape is critical and minimizing fines generation is a priority.
mineralized river bed sand gravel crusher
1.. What is “mineralized riverbed gravel”?
Mineralized riverbed gravel typically refers to:
A mixture of sand and gravel within natural alluvial deposits
Containing heavy minerals such as native gold, platinum group metals, cassiterite, ilmenite, and zircon
Particle size: 0–150mm, commonly 5–60mm pebbles + sand
Physical properties: High hardness (predominantly quartz, flint, granite pebbles), highly abrasive, often containing silt and water
2.Advantages of Double Roll Crushers (Why Are They Suitable?)
Excellent Particle Shape: Employing the principle of compression crushing, double roll crushers produce material particles predominantly in a cubic shape with low content of needle and flake particles. This is highly advantageous for applications requiring well-shaped aggregates, such as concrete aggregates.
Minimal Over-Grinding: Compared to hammer crushers or impact crushers, double roll crushers generate a lower proportion of powder (stone dust) during crushing. This better preserves the desired particle size of sand and gravel, increasing the yield of finished products.
Simple Structure, Easy Maintenance: The mechanical structure is relatively straightforward, making operation and maintenance relatively simple with fewer potential failure points.
Good Adaptability to Moisture- and Mud-Containing Materials: Double-roll crushers demonstrate superior adaptability to materials with slightly higher moisture and clay content (commonly found in riverbed gravel) compared to cone crushers, exhibiting reduced susceptibility to blockages. However, pre-treatment remains necessary for highly viscous materials.
Controllable particle size adjustment:
Output particle size can be conveniently controlled by adjusting the gap between the two rolls, offering excellent flexibility.
]]>
equipment for gold mining and processing, demonstrating significant advantages particularly in the medium and fine crushing stages.
ores for gold extraction and processing crusher
1. Technical Suitability: Feasibility of Gold Ore Crushing
Hardness and Material Compatibility
The double-roll crusher can process gold ores with compressive strength ≤250MPa, covering quartz vein-type gold deposits (typically 150-200MPa hardness) and
certain superhard rock types. Roll surfaces utilize high-chromium manganese steel or wear-resistant alloy (hardness HRC≥60), delivering over 2 years of service
life and significantly reducing maintenance costs.
Precision Particle Size Control
Hydraulic or mechanical roll gap adjustment (±1mm precision) enables stable output particle sizes between 1-5mm, meeting optimal sizing requirements for
leaching/flotation processes. Over-crushing rate <10% minimizes loss of fine gold particles.
Adaptability to Wet and Sticky Materials
The toothed roller design handles gold ore with high clay content or moisture content ≤35%, using shear force to strip viscous minerals and prevent jamming
(traditional jaw/cone crushers are prone to clogging).
2. Core Advantages: Competitive Edge in Gold Ore Crushing Applications
High Efficiency & Energy Savings
Layer compression crushing principle saves 30%-45% electricity compared to impact crushers, with power consumption per ton of ore at only 0.8-1.2 RMB;
Dual-motor independent drive mode allows flexible switching between single/dual-unit operation, further reducing energy consumption.
Overload Protection & Stability
Hydraulic springs automatically retract upon encountering hard objects (e.g., iron blocks), safeguarding core components;
Dual-safety system featuring hydraulic couplers + sensors ensures a failure rate **<1%, guaranteeing continuous production.
Environmental Compliance
Enclosed structure + pulse dust collection system keeps dust emissions **<10mg/m3 and noise ≤75dB(A)**, meeting green mining standards.
Versatility and Flexibility
Interchangeable tooth profiles adapt to various gold ore types (e.g., oxidized, sulfide);
Tiered dual-tooth roller models integrate crushing and screening functions, streamlining process flows.
steel slag and graphite crusher
1.Summary Comparison
| Features | Crushed Steel Slag | Crushed Graphite |
| Core Advantages | High-efficiency separation of metal and slag, excellent particle shape, minimal over-crushing | Extremely low over-grinding rate, anti-adhesion, controllable particle size |
| Roll Surface Selection | Ultra-wear-resistant tooth surfacesSmooth Rollers | Smooth Rollers |
| Cost-Effectiveness | 30% energy savings, extended wear part lifespan | Low power consumption, minimal maintenance costs |
| Material Properties | High hardness, high abrasion resistance, metal content | Soft, brittle, self-lubricating |
]]>
Iron Ore Crushers
1.What are the models of basalt sand making machines?
They can be categorized into large, medium, and small sizes based on model specifications.
2PGT400×250, 2PGT400×400, 2PGT610×400: With an hourly output of approximately 2-20 tons, these are small spring-loaded pebble sand making machines suitable for investment by small to medium-sized sand plants.
2PGT750×500, 2PGT800×600, with an hourly output of 10-50 tons, are medium-sized spring pebble sand makers. This model is suitable for new sand plants with relatively low investment costs.
2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800, with an hourly output of 20-80 tons, are medium-sized hydraulic pebble sand makers. Hydraulic models offer greater intelligence, higher output, and more cost-effective operation.
2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000, with hourly output of 80-400 tons, belong to the large flagship series of CNC pebble sand makers. Suitable for medium to large sand plants, they feature one-button start/stop for convenient and efficient operation.
2.Working Principle
The basalt sand-making machine operates on the principle of compression crushing. Its core consists of a pair of high-strength, wear-resistant counter-rotating rollers. During operation, raw basalt material enters the crushing chamber through the feed inlet and is subjected to intense compression by the two high-speed rotating rollers. The crushing force and output particle size are controlled by adjusting the distance between the rollers. Under the combined squeezing and shearing forces of the two rollers, the hard basalt is progressively crushed and refined into sand and gravel products featuring uniform particle shape and well-graded size distribution.
]]>
1.Advantages of Double Roll Crushers
95% Sand Production Rate
The double roll crusher builds upon traditional sand-making technology by integrating six intelligent systems, installation technology systems, finished product inspection systems, and more. This enhances its output, production capacity, and service life beyond other sand-making equipment. It is recognized as the premier stone crushing and sand-making machinery.
Easy Grain Size Adjustment
The double roll crusher allows for effortless adjustment of sand and gravel particle size.The working principle of the double-roll crusher is straightforward—essentially stone-on-stone crushing. Stones naturally falling within the chamber collide with stones accelerated and flung out by the impeller, achieving the crushing effect. When the accelerated stones collide with the naturally falling stones, a vortex is formed. During the return process, secondary crushing occurs, ensuring sufficient crushing force and frequency within the crushing chamber, resulting in higher product quality.
High Product Purity
The double-roll crusher eliminates the need for water to remove silt, thereby reducing costs. Unlike sand-making processes that require water for stone washing, this design not only achieves high product purity but also conserves water resources.
Concrete Crusher
1.Concrete Crusher
Feed Size: 25-100mm
Production Capacity: 2-400 t/h
Suitable Materials:
River pebbles, calcite, quartzite, marble, cobblestones, bentonite, iron ore, bluestone, quarry rock, slag, limestone, weathered sand, diabase, granite, basalt, etc.
Application Scope:
Suitable for crushing in mining, cement, highway, railway, coal, metallurgy, building materials, and other industries.
2.Working Principle
The concrete crusher utilizes two independently driven roller shafts that rotate in opposite directions to generate crushing and grinding forces. Material enters through the feed opening and falls between the rollers, where it is crushed by the opposing rollers before naturally discharging. When encountering excessively hard or uncrushable material, the rollers automatically retract via hydraulic cylinders or springs, increasing the gap between them. allowing the hard or uncrushable material to pass through unharmed. The opposing rollers can adjust the pressure of the hydraulic cylinders or springs to control the final product’s particle size.
3.Performance Advantages
1. High Crushing Ratio and Strong Production Capacity
Utilizing the compression crushing principle, it achieves a high crushing ratio and is suitable for coarse, medium, and fine crushing of high-hardness materials such as coal, limestone, and slag. The machine operates smoothly with robust production capacity.
2. More Crushing, Less Grinding with Excellent Product Shape
By reducing feed particle size and improving the pulverization characteristics of feed material, it achieves the effect of more crushing and less grinding, enhancing production efficiency. The finished product is fine and of high quality.
3. Long service life and low operating costs
The roller shells are made of high-yield wear-resistant materials, featuring strong impact resistance and high wear resistance. Material loss during crushing is minimal, with low failure rates. This reduces subsequent maintenance and upkeep costs, resulting in low operating expenses and a long service life.
