Applicable materials:Iron ore, titanic iron ore, chromate iron ore, brasses, zirconite, rutile, monazite, tungsten ore, gold, silver, copper, pyrite, niobium ore.
Application scope:Iron ore, titanic iron ore, chromate iron ore, brasses, zirconite, rutile, monazite, tungsten ore, gold, silver, copper, pyrite, niobium ore.

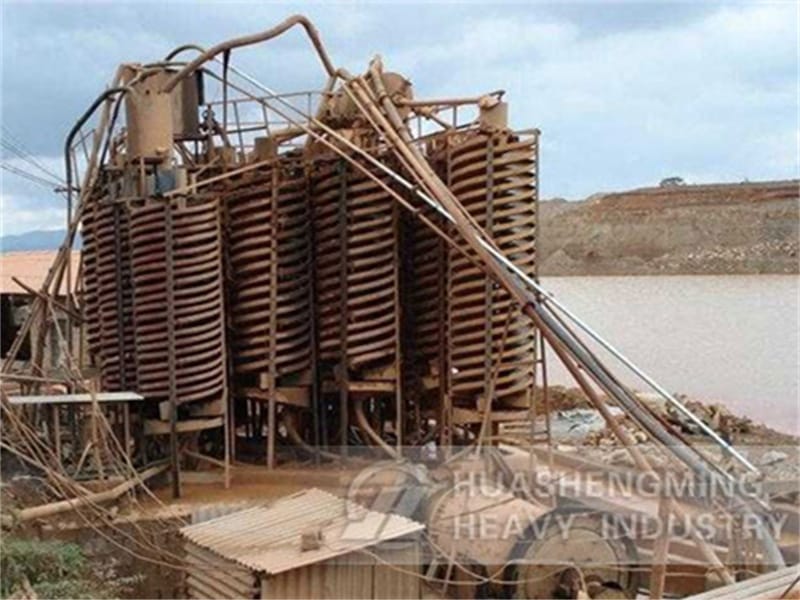

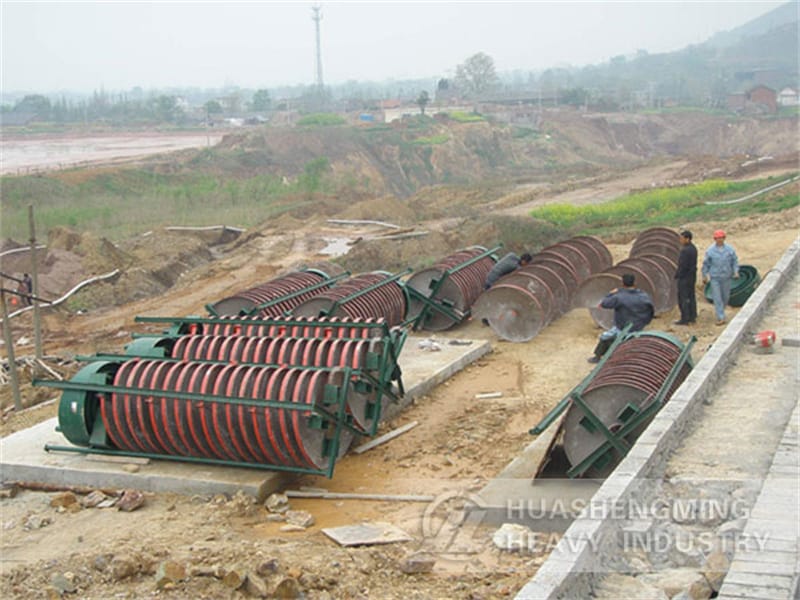

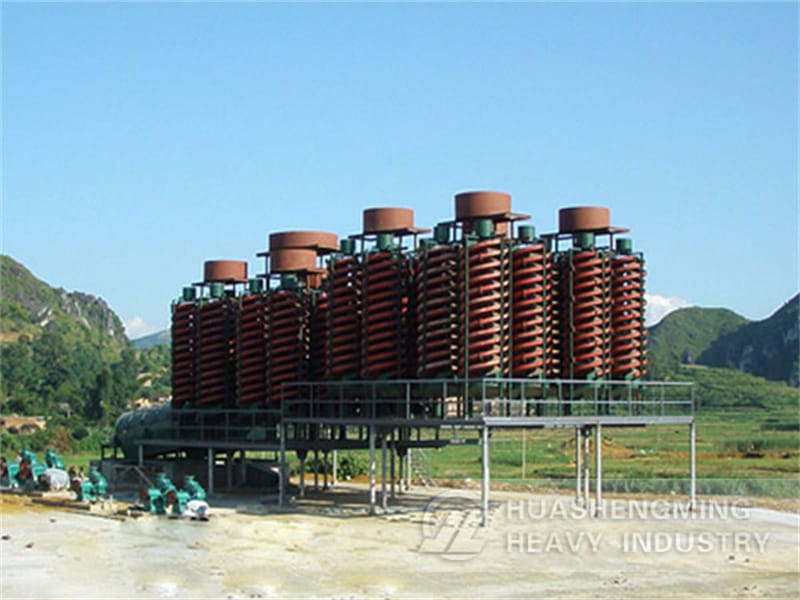

Spiral Chute is suitable for sorting for gold mine, silver mine, alluvial gold mine, lead-zinc mine, copper mine, tin mine, titanium iron mine, pyrite mine, hematite, limonite, chromite, ferberite, tungsten, tantalum-niobium, colliery, monazite, sapphire , barites, rutile, zircon etc. Spiral Chute is high efficient equipment for sorting ferrous, nonferrous, nonmetallic mine and minor metal mine.
Make the spiral chute stand, adjust the vertical line, fixed the proper place with the iron structure or wood, make the ore sand deliver to two feed openings of the screw chute top, enter enough water, adjust the mash chrome, the mash flows freely from the high, produce the inertial force at the speed of the rotary, divided the sand and ore, the concentrate comes into bucket with the tract, gangue comes into the bucket with the tract to the sand pool, and pump off, complete the whole process.
| Model | Helix?No. | Cycle | Feed?size?(mm) | Feed?density?(%) | Capacity?(t/h) | Area??(m2) | Height?(?m) |
| 5LL400 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.5-0.2 | 0.25 | 1.5 |
| 5LL600 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| 5LL900 | 2-3 | 4-5 | 0.03-3 | 30-50 | 2-3 | 1.2 | 3.2 |
| 5LL1200 | 2-4 | 4-5 | 0.03-3 | 30-50 | 4-6 | 2 | 5.23 |
| 5LL2000 | 2-4 | 3-5 | 0.04-4 | 20-45 | 15-40 | 5.7 | 6.6 |
