Applicable materials:Limestone, plaster, clinker, mixed material, calcium phosphide, dolomite and pearl ore etc.
Application scope:Limestone, plaster, clinker, mixed material, calcium phosphide, dolomite and pearl ore etc.

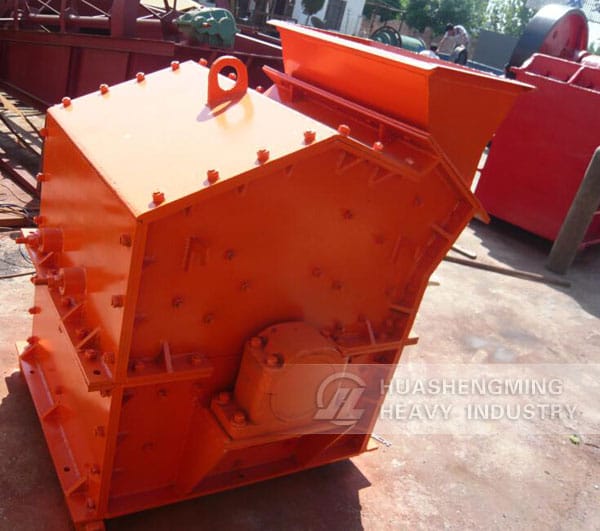

High Efficiency Fine Crusher is used for fine crushing medium hard materials in concrete industry, such as limestone, plaster, clinker, mixed material, calcium phosphide, dolomite, and pearl ore, etc. Impact Fine crusher is also applicable to building material, fertilizer, mine and fireproofing material industries.
| PXJ | Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
Rotor width (mm) |
| Type | 800×400 | 800×600 | 800×800 | 1010×1010 | 1200×1000 | 1200×1200 | 1400×1400 | 1600×1600 |
| Feed?opening Size (mm) |
400×185 | 500×250 | 550×330 | 1000×350 | 1200×400 | 1200×450 | 1500×500 | 1600×550 |
| Feeding?size (mm) |
<120 | <180 | <180 | <180 | <180 | <180 | <190 | <190 |
| Discharging size (mm) |
<5 | <5 | <5 | <5 | <5 | <5 | <5 | <5 |
| Output?opening range (mm) |
5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Cement (T/H) |
20-30 | 35-40 | 35-45 | 45-55 | 80-110 | 100-110 | 100-150 | 170-210 |
| Limestone (T/H) |
35-45 | 45-55 | 55-65 | 65-75 | 50-100 | 90-100 | 100-150 | 190-250 |
| Motor (KW) |
37-45 | 45-55 | 45-55 | 55-75 | 100-110 | 100-132 | 160 | 250 |
