Applicable materials:River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on
Application scope:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
1. Superior to hammer crusher with no wearing parts, pretty sand shape, and high capacity.
2. Suitable for sand plant, metal mine crushing, waste stone crushing, etc.with excellent quality.
3. Applicable for 200 kinds of stone materials, wet and dry stuffs with one button operation.
4. National patented roller skin material with service life ≥ 2 years.

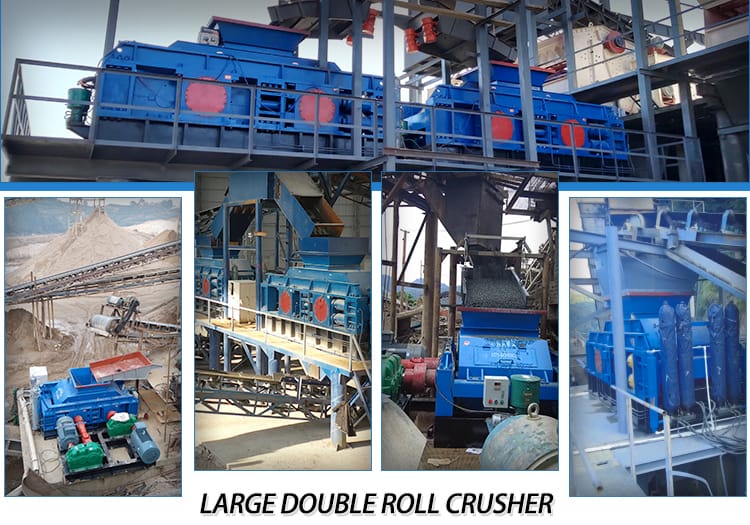

Double roller crusher come in large, medium, and small models. Here are the categories based on different models:
1、Small spring roller crushers, such as 2PGT400×250, 2PGT400×400, and 2PGT610×400, produce an hourly output of about 2-20 tons. These models are suitable for investment and use in small and medium-sized sand plants.
2、Medium-sized spring roller crushers, including 2PGT750×500 and 2PGT800×600, produce an hourly output of 10-50 tons.
3、Medium-sized hydraulic double roller crushers, such as 2PGY750×500, 2PGY800×600, 2PGY800×800, and 2PGY1000×800, produce an output of 20-80 tons per hour. These hydraulic models are more intelligent, offer higher output, and save costs.
4、The large flagship series of CNC hydraulic double roller crushers, including 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, and 2PGY2000×1000, produce an hourly output of 80-400 tons. These models are suitable for use in medium and large sand plants.
The machine’ s gap between two rollers can be adjusted freely between 1mm-20mm. After the roller’ s gap is predetermined, the crushing grain size can be controlled reliably, and all of it is discharged from the lower part of the crushing chamber with ideal grain size.
|
Specification and model
|
Roll diameter (mm) |
Feed size (mm) |
Productive capacity (t/h) |
|
2PGT400×250
|
φ400
|
≤25
|
2-10
|
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
| 2PGY800×1000 |
φ800
|
≤40
|
50-80
|
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
