Applicable materials:Crushing medium-hard or brittle materials, big material, such as coal, cement, gypsum, alumen, brick, tile, limestone, glass etc.
Application scope:Crushing medium-hard or brittle materials, big material, such as coal, cement, gypsum, alumen, brick, tile, limestone, glass etc.

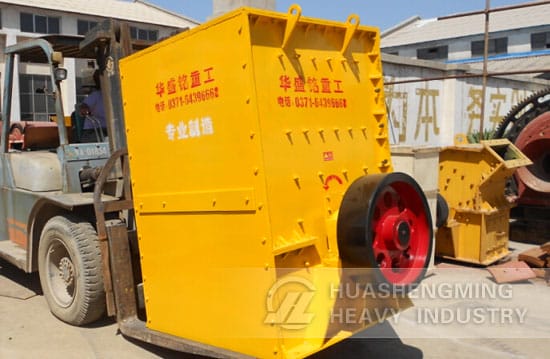

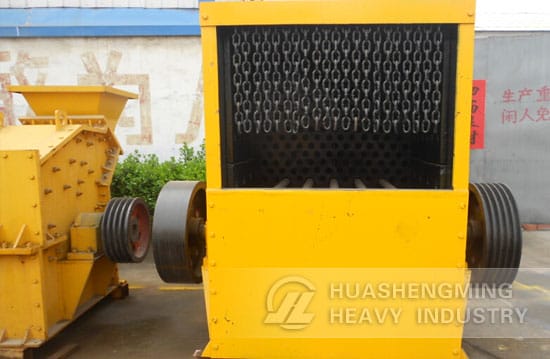

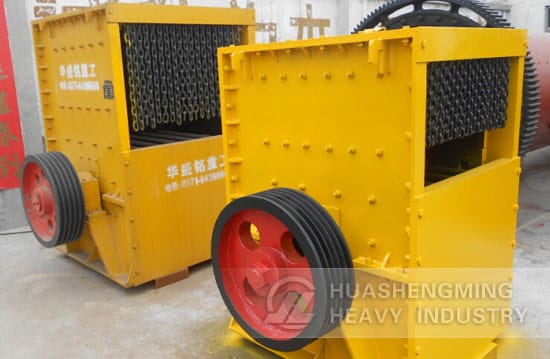

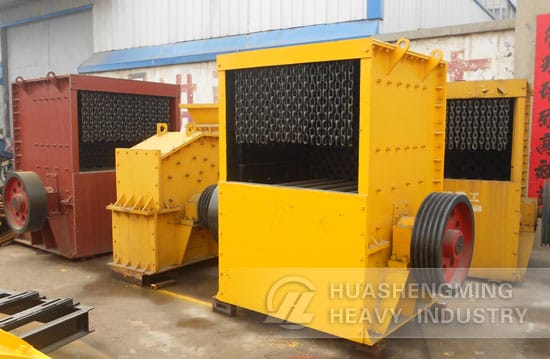

Heavy Hammer Crusher with feature of large feeding sizes, it it very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It it suitable for crush raw material with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal, coal gangue etc.
| Model | Rotor?diameter (mm) |
Rotor?diameter (mm) |
Capacity (t/h) |
Max?Feeding?size (mm) |
Suitable?for material |
Power (kw) |
| 700×1000 | 700 | 1000 | 50-80 | 500 | All?kinds?of material?with strength?no more?than 300Mpa |
45-55 |
| 900×1200 | 900 | 1200 | 70-100 | 800 | 75-90 | |
| 1000×1000 | 1000 | 1000 | 90-120 | 800 | 75-90 | |
| 1200×1200 | 1200 | 1200 | 130-160 | 900 | 110-132 | |
| 1400×1400 | 1400 | 1400 | 190-210 | 1000 | 132-160 | |
| 1600×1600 | 1600 | 1600 | 250-300 | 1000 | 160-210 | |
| 1800×1800 | 1800 | 1800 | 300-400 | 1200 | 210-280 |
