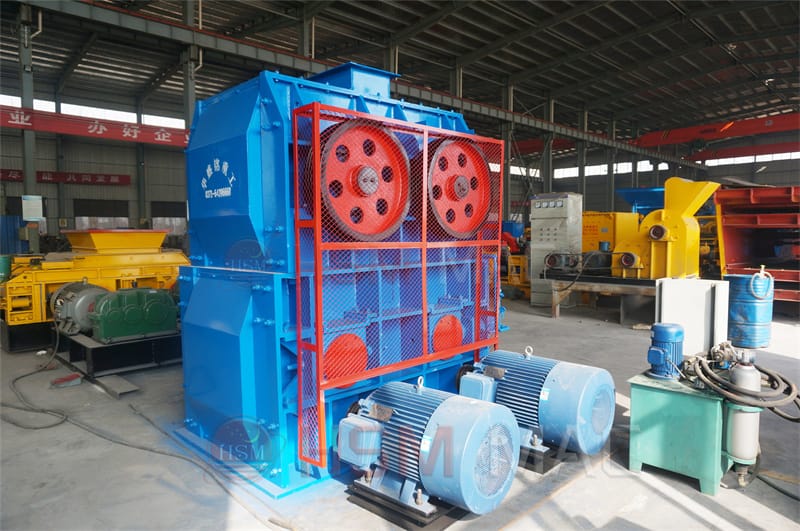

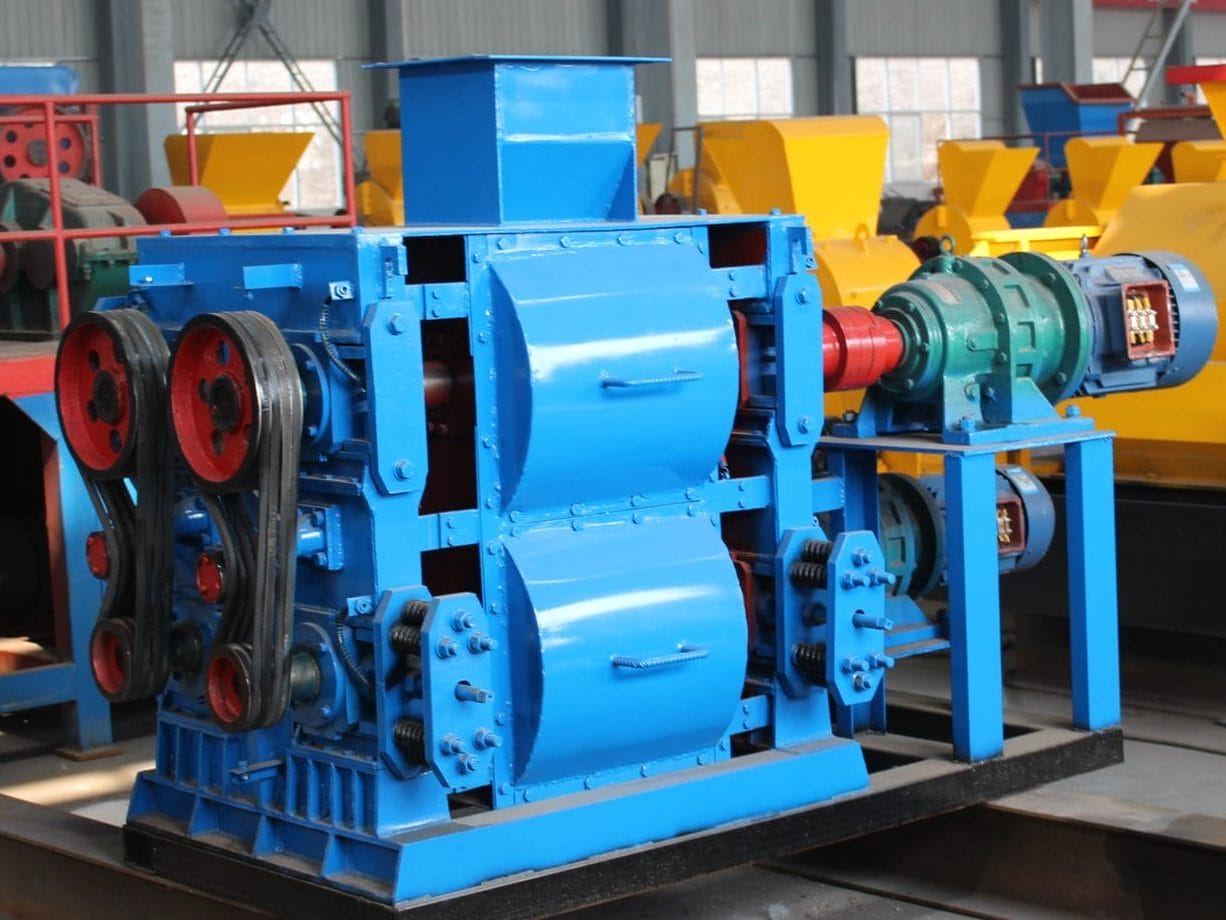

What is Four roll crusher

Quad Roll Crushers

Four roll crusher is a kind of medium and fine crushing machine with simple structure, reliable performance. It is mainly used in crushering medium hardness materials such as limestone, clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

Why Choose Huashengming?

1. Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2. High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3. Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4. Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Product advantage

What is Two Roll Sand Making Machine

The Two Roll Sand Making Machine?is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Two Roll Sand Making Machine Test video

Why Choose Huashengming?

1. Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2. High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3. Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Two Roll Sand Making Machine?Suitable Materials

River pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain rock, limestone, weathered sand, diabase, granite, basalt, and other materials for crushing and sand-making.

Working Principle

The Two Roll Sand Making Machine?uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.

Performance Advantages

Superior Product Shape: Minimal over-crushing.

Adjustable Discharge Size: Simple and precise control.

Non-Clogging Design: Optimized structure avoids blockages.

Dual Motors: Powerful and reliable.

High Durability: Rollers made of patented manganese steel for extended lifespan.

Cost-Effective: Low investment and operating costs.

Model Categories

The crusher is classified into small, medium, and large models:

1. Small Spring Models?(2PGT series): 2PGT400×250, 2PGT400×400, 2PGT610×400. Hourly output: 2–20 tons. Ideal for small/medium sand plants.

2. Medium Spring Models?(2PGT series): 2PGT750×500, 2PGT800×600. Hourly output: 10–50 tons. Cost-effective for new sand plants.

3. Medium Hydraulic Models?(2PGY series): 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800. Hourly output: 20–80 tons. Higher efficiency and automation.

4. Large Hydraulic Flagship Models?(2PGY series): 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000. Hourly output: 80–400 tons. Designed for large-scale plants with one-click operation.

What is Roller sand making machine

The Roller sand making machine is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Why Choose Huashengming?

Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Roller Sand Making Machine?Suitable Materials

River pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain rock, limestone, weathered sand, diabase, granite, basalt, and other materials for crushing and sand-making.

Working Principle

The Roller Sand Making Machine uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.

Model Categories

The crusher is classified into small, medium, and large models:

Small Spring Models?(2PGT series): 2PGT400×250, 2PGT400×400, 2PGT610×400. Hourly output: 2–20 tons. Ideal for small/medium sand plants.

Medium Spring Models?(2PGT series): 2PGT750×500, 2PGT800×600. Hourly output: 10–50 tons. Cost-effective for new sand plants.

Medium Hydraulic Models?(2PGY series): 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800. Hourly output: 20–80 tons. Higher efficiency and automation.

Large Hydraulic Flagship Models?(2PGY series): 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000. Hourly output: 80–400 tons. Designed for large-scale plants with one-click operation.

The Flat Roller Crusher is suitable for coarse and medium crushing of brittle blocky materials in industries such as cement, chemical industry, power, mining, metallurgy, building materials, refractory materials, and coal mines. It has a large feed particle size and adjustable discharge particle size, and can crush materials with compressive strength ≤160MPa.

The Flat Roller Crusher crushes the material by falling through the feed opening into the space between the two rollers for extrusion crushing, and the finished material falls naturally. When encountering hard or unbreakable materials, the rollers of the roller crusher can automatically retreat under the action of the hydraulic cylinder or spring, increasing the roller gap, allowing the hard or unbreakable materials to fall, thereby protecting the machine from damage. The two rollers rotating in opposite directions have a certain gap, and by changing the gap, the maximum discharge particle size of the product can be controlled. The double-roller crusher uses a pair of opposite rotating round rollers, while the four-roller crusher uses two pairs of opposite rotating round rollers for crushing operations.

Reasons for?choosing?us

1. Compared with hammer sand making machine, stone roller crusher does not need to replace wearing parts.

2. The finished product features pretty shape, well gradation, low over-crushing rate and high output.

3. Yellowish brown stone roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4. Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

Machine-testing Video

It is suitable for crushing sticky stone?material?into medium size. Roller?crusher utilizes two rollers rotating in opposite direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs.?Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the?machine?frame and held against it by springs. Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it.?Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.

Product category

Roller Mill Crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

Product Model

The crusher is classified into small, medium, and large models:

1. Production capacity: 2-12 tph

Small stone roller crusher: 250×250，400×250，400×400，610×400

2. Production capacity: 20-50 tph

Medium stone roller crusher: 750×500，800×600，800×800，1000×800

3. Production capacity: 50-400 tph

Large stone roller crusher: 1200×800，1200×1000，1500×800，1500×1000，1500×1200，1800×1200，2000×1000 or larger.

HSM machines?features different configurations. The sales manager can recommend the proper product to the customers?according?to their facts.

What is Plain Roller Crusher

The Smooth Double Roll Crusher is a kind of machine which is extended by the spring Double Roll Crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Plain Roller Crusher Suitable Materials

River pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain rock, limestone, weathered sand, diabase, granite, basalt, and other materials for crushing and sand-making.

Why Choose Huashengming ?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Performance advantages:

1. Superior Product Shape: Minimal over-crushing.

2. Adjustable Discharge Size: Simple and precise control.

3. Non-Clogging Design: Optimized structure avoids blockages.

4. Dual Motors: Powerful and reliable.

5. High Durability: Rollers made of patented manganese steel for extended lifespan.

6. Cost-Effective: Low investment and operating costs.

Choosing the right crushing equipment is essential for producing quality sand and gravel. The double roller crusher offers high efficiency, low energy consumption, and superior product quality. For sand and gravel producers, this equipment enhances competitiveness and meets market demands.

If you need a reliable crusher, consider the double roller crusher. It boosts your production line’s efficiency and output stability. Huashengming Heavy Industry offers top-quality double roller crushers. Contact us for more details.

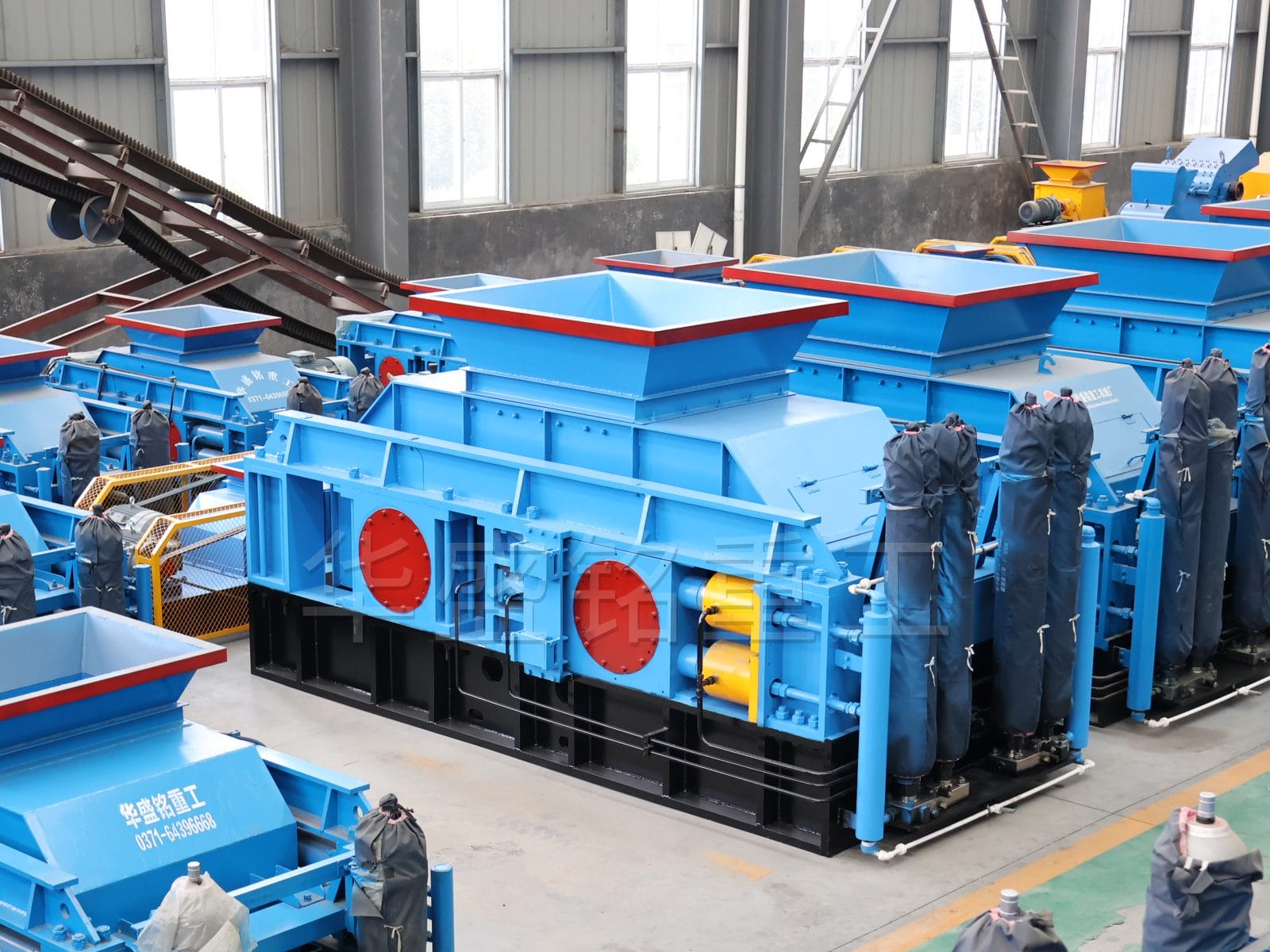

What is Smooth Double Roll Crusher

The Smooth Double Roll Crusher is a kind of machine which is extended by the spring Double Roll Crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Smooth Double Roll Crusher Suitable Materials

River pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain rock, limestone, weathered sand, diabase, granite, basalt, and other materials for crushing and sand-making.

Why Choose Huashengming ?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Performance advantages:

1. Superior Product Shape: Minimal over-crushing.

2. Adjustable Discharge Size: Simple and precise control.

3. Non-Clogging Design: Optimized structure avoids blockages.

4. Dual Motors: Powerful and reliable.

5. High Durability: Rollers made of patented manganese steel for extended lifespan.

6. Cost-Effective: Low investment and operating costs.

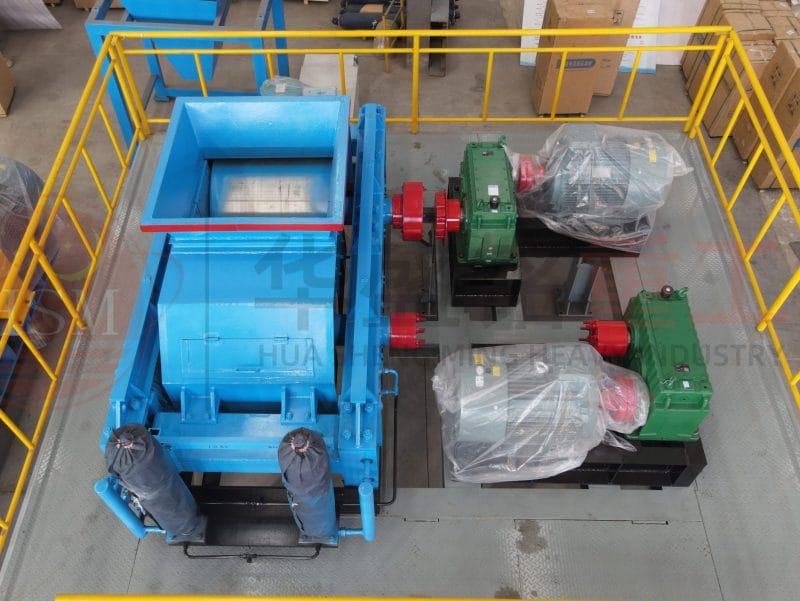

What is Two Roll Crusher

The Two Roll Crusher represents another breakthrough in the manufacturing of sand and aggregate production equipment. Also known as a dual-roll crusher or dual-roll sand maker, it utilizes two motors to drive dual rollers that crush and grind materials. It is suitable for fine crushing operations where the feed size is below 80mm and the final product size ranges from 50 mesh to 20mm.

The Two Roll Crusher?is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Why Choose Huashengming?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Model Categories

The crusher is classified into small, medium, and large models:

1.Small Spring Models?(2PGT series): 2PGT400×250, 2PGT400×400, 2PGT610×400. Hourly output: 2–20 tons. Ideal for small/medium sand plants.

2.Medium Spring Models?(2PGT series): 2PGT750×500, 2PGT800×600. Hourly output: 10–50 tons. Cost-effective for new sand plants.

3.Medium Hydraulic Models?(2PGY series): 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800. Hourly output: 20–80 tons. Higher efficiency and automation.

4.Large Hydraulic Flagship Models?(2PGY series): 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000. Hourly output: 80–400 tons. Designed for large-scale plants with one-click operation.

The Twin Roller Crusher is suitable for coarse and medium crushing of brittle blocky materials in industries such as cement, chemical industry, power, mining, metallurgy, building materials, refractory materials, and coal mines. It has a large feed particle size and adjustable discharge particle size, and can crush materials with compressive strength ≤160MPa.

The Roller Mill Crusher crushes the material by falling through the feed opening into the space between the two rollers for extrusion crushing, and the finished material falls naturally. When encountering hard or unbreakable materials, the rollers of the roller crusher can automatically retreat under the action of the hydraulic cylinder or spring, increasing the roller gap, allowing the hard or unbreakable materials to fall, thereby protecting the machine from damage. The two rollers rotating in opposite directions have a certain gap, and by changing the gap, the maximum discharge particle size of the product can be controlled. The double-roller crusher uses a pair of opposite rotating round rollers, while the four-roller crusher uses two pairs of opposite rotating round rollers for crushing operations.

Reasons for?choosing?us

1.Compared with hammer sand making machine, stone roller crusher does not need to replace wearing parts.

2.The finished product features pretty shape, well gradation, low over-crushing rate and high output.

3.Yellowish brown stone roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4.Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

Machine-testing Video

Product category

Roller Mill Crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

Product Model

There are small, medium and large stone roller crusher.

1.Production capacity: 2-12 tph
Small stone roller crusher: 250×250，400×250，400×400，610×400

2.Production capacity: 20-50 tph
Medium stone roller crusher: 750×500，800×600，800×800，1000×800

3.Production capacity: 50-400 tph
Large stone roller crusher: 1200×800，1200×1000，1500×800，1500×1000，1500×1200，1800×1200，2000×1000 or larger.

HSM machines?features different configurations. The sales manager can recommend the proper product to the customers?according?to their facts.

Spring Roller Sand Making Machine is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs. Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the machine frame and held against it by springs. Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it. Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.

What is Spring Roller Sand Making Machine

The Spring Roller Sand Making Machine?is suitable for coarse and medium crushing of brittle blocky materials in industries such as cement, chemical industry, power, mining, metallurgy, building materials, refractory materials, and coal mines. It has a large feed particle size and adjustable discharge particle size, and can crush materials with compressive strength ≤160MPa.

The Spring Roller Sand Making Machine crushes the material by falling through the feed opening into the space between the two rollers for extrusion crushing, and the finished material falls naturally. When encountering hard or unbreakable materials, the rollers of the roller crusher can automatically retreat under the action of the hydraulic cylinder or spring, increasing the roller gap, allowing the hard or unbreakable materials to fall, thereby protecting the machine from damage. The two rollers rotating in opposite directions have a certain gap, and by changing the gap, the maximum discharge particle size of the product can be controlled. The double-roller crusher uses a pair of opposite rotating round rollers, while the four-roller crusher uses two pairs of opposite rotating round rollers for crushing operations.

Reasons for?choosing?us

1. Compared with hammer sand making machine, stone roller crusher does not need to replace wearing parts.

2. The finished product features pretty shape, well gradation, low over-crushing rate and high output.

3. Yellowish brown stone roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4. Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

River pebble roller crusher working principle

The? Roller Mill Crusher?operates through rollers. The pebbles, put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

Product category

Roller Mill Crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

Product Model

The crusher is classified into small, medium, and large models:

1. Production capacity: 2-12 tph

Small stone roller crusher: 250×250，400×250，400×400，610×400

2.Production capacity: 20-50 tph

Medium stone roller crusher: 750×500，800×600，800×800，1000×800

3. Production capacity: 50-400 tph

Large stone roller crusher: 1200×800，1200×1000，1500×800，1500×1000，1500×1200，1800×1200，2000×1000 or larger.

HSM machines?features different configurations. The sales manager can recommend the proper product to the customers?according?to their facts.

What is a Smooth Roller Crusher?

A Smooth Roller Crusher?is a highly efficient and precise crushing machine that utilizes Computer Numerical Control (CNC) technology. The CNC system allows for fine-tuned adjustments to roller pressure, enabling consistent output and enhanced performance. This results in energy savings, reduced wear on machinery, and higher production capacity.

Suitable Materials

River pebbles, calcite, quartz, glass, marble, cobblestone, bentonite, iron ore, bluestone, mountain rock, limestone, weathered sand, diabase, granite, basalt, and other materials for crushing and sand-making.

Why Choose Huashengming?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Key Features and Benefits

1. Precise Control: The CNC technology allows for exact adjustments to crushing force, ensuring that the sand and gravel produced meet quality standards.

2. Energy Efficiency: With less energy consumption compared to traditional crushers, the CNC roller press helps reduce operating costs.

3. Versatility: The CNC roller press can handle a wide variety of raw materials, including different types of sand and gravel, making it a versatile choice for many production lines.

4. Durability: Built with high-quality components, the CNC roller press is designed to handle heavy workloads, ensuring long-term reliability with minimal maintenance.

Smooth Roller Crusher Models: Finding the Right Fit

1.Small Spring Models?(2PGT series): 2PGT400×250, 2PGT400×400, 2PGT610×400. Hourly output: 2–20 tons. Ideal for small/medium sand plants.

2.Medium Spring Models?(2PGT series): 2PGT750×500, 2PGT800×600. Hourly output: 10–50 tons. Cost-effective for new sand plants.

3.Medium Hydraulic Models?(2PGY series): 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800. Hourly output: 20–80 tons. Higher efficiency and automation.

4.Large Hydraulic Flagship Models?(2PGY series): 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000. Hourly output: 80–400 tons. Designed for large-scale plants with one-click operation.

Conclusion

Choosing the right equipment is crucial for optimizing production and reducing costs. The Smooth Roller Crusher is an excellent choice for sand and gravel producers looking to enhance efficiency, reduce energy consumption, and improve the quality of their products. Whether you need a small, medium, or large-scale crusher, the variety of?double roller crushers?available ensures that you can find a solution that fits your specific needs.
