small stone crusher machine
rock crusher machine
Applicable materials:River pebbles, calcite, quartz stone, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt, etc.
Application scope:River pebbles, calcite, quartz, marble, cobblestone, bentonite, iron ore, bluestone, mountain stone, slag, limestone, weathered sand, diabase, granite, basalt, etc.
An asphalt crusher is specialized machinery designed to process milling materials,discarded road surfaces, and asphalt. It integrates modular screening and crushing structures, offering time and cost efficiency while enhancing productivity and reducing maintenance demands. This equipment is ideal for road maintenance and recycled material production, particularly suited for flexible crushing requirements. It efficiently handles various waste materials with adjustable output particle sizes, ensuring adaptability to diverse applications. Whether dealing with recycled asphalt mixtures or concrete debris, it enables effective resource recycling.
Recycled asphalt mixtures,Concrete debris,Stone materials,Aggregates,Brick and tile fragments,Sand and soil,Fine particles

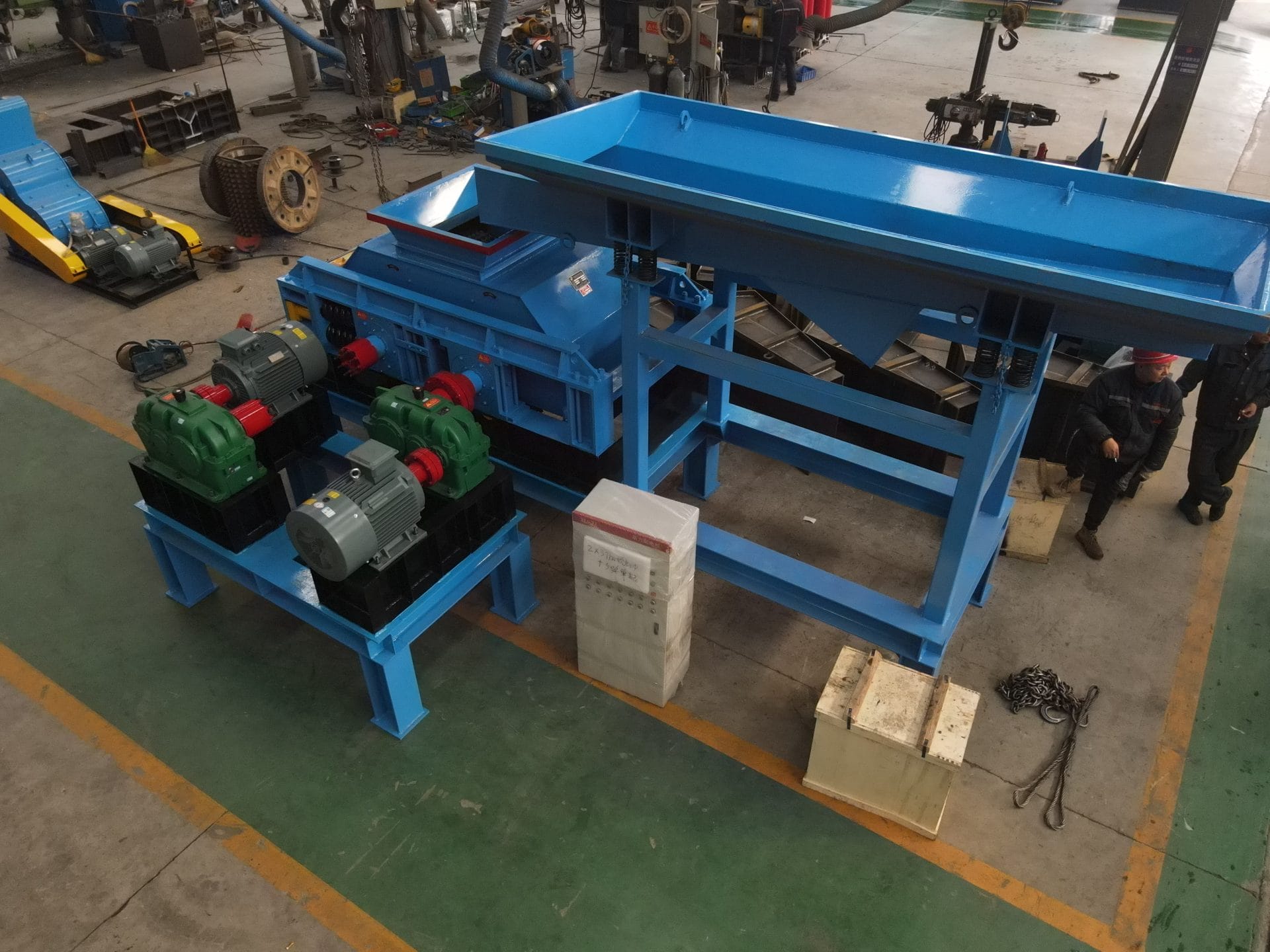

The asphalt crusher utilizes two wear-resistant alloy toothed rollers that rotate in opposite directions, generating high compressive forces to break down materials. When materials enter the V-shaped crushing chamber between the rollers, they undergo crushing, shearing, and grinding, resulting in particles of the desired size. The processed material is then transported via conveyor systems.
1.High Crushing Ratio, Low Over-Crushing Rate: Ensures efficient material processing with minimal waste.
2.Durable Roller Skin Material: Hua Shengming’s proprietary roller skin lasts twice as long as conventional materials.
3.Wide Production Capacity: Handles 5–2000 tons per hour, suitable for projects of all scales.
4.Adjustable Output with Low Powder Generation: Produces well-shaped granules and minimizes dust.
5.Flexible Crushing Process: Preserves the original structure of materials, enhancing reuse potential.
6.Easy Maintenance and Operation: Reduces labor costs and simplifies upkeep.
This equipment is widely applied in road reconstruction, airport runways, and sustainable engineering projects, aligning with green development trends in modern infrastructure.
small stone crusher machine
rock crusher machine
| Model | Roller diameter (mm) |
Roller length (mm) |
Max?feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) |
| 450×500 | 450 | 500 | 200-500 | 15-100 | 30-60 | 7.5×2 | 3800 | 2260×2200×766 |
| 600×750 | 600 | 750 | 300-600 | 20-120 | 60-100 | 11×2 | 7200 | 2780×3065×1310 |
| 600×900 | 600 | 900 | 300-600 | 30-150 | 80-120 | 18.5×2 | 7800 | 4500×1900×1350 |
| 800×1050 | 800 | 1050 | 500-800 | 30-150 | 100-160 | 22×2 | 12600 | 2550×2050×1100 |
| 900×900 | 900 | 900 | 600-900 | 30-200 | 150-200 | 22×2 | 13500 | 2780×4100×1550 |
| 1015×760 | 1015 | 760 | 700-950 | 30-200 | 150-200 | 45×2 | 18800 | 7800×3200×1980 |
| 1200×1500 | 1200 | 1500 | 800-1050 | 30-200 | 200-300 | 55×2 | 52000 | 8010×4500×2050 |
